EXTRUDER TECHNOLOGY

New and clean screw elements can be effortlessly mounted onto the screw shaft. Pulling off used components, on the other hand, is challenging. Product residues can get between the screw elements as well as between segment and screw shaft. If this material cokes due to the effect of temperature or solidifies on cooling, enormous forces are often required to remove the screw elements safely.

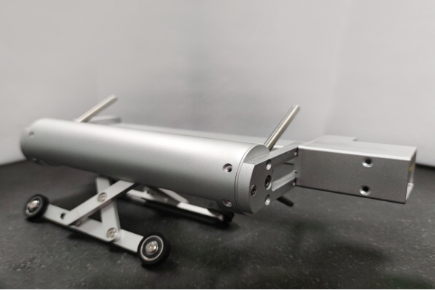

We avoid this: C.A.PICARD^® has developed the “FD system”, a specialized hydraulic pulling device. We offer it as a service.

The process is straightforward for you: you send us your screw shaft with screw elements mounted. We record the existing configuration, professionally pull off the elements, clean all components, and document the exact wear state. On request, we reassemble the screw elements in the original or a newly defined configuration using the required new parts.

Also possible: you purchase the complete FD system for your own maintenance.

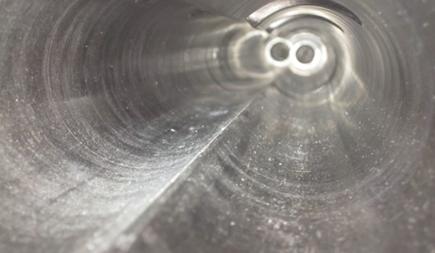

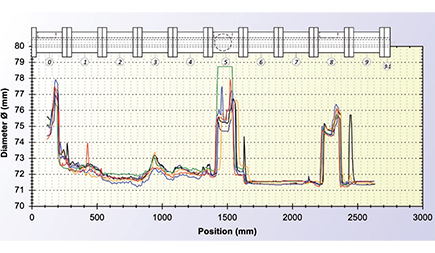

We measure directly on the twin-screw extruder and thus detect barrel wear early.

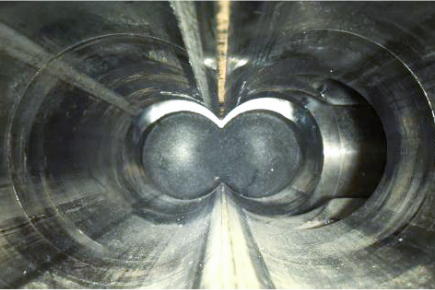

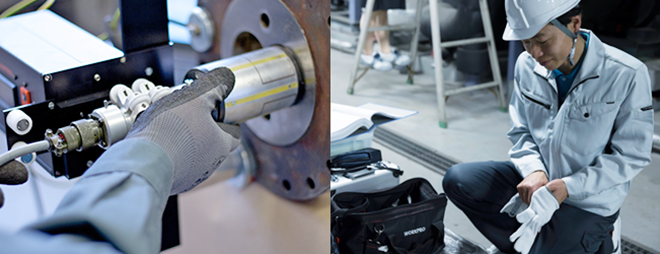

Anyone who wants to remain permanently productive must identify wear in good time. We monitor the condition of your barrels directly on the extruder line. The components are measured in the installed state, which eliminates the time-consuming disassembly. Only a clean and cooled surface is required to deliver precise results.

Through these regular, at the same time time-saving inspections, you safeguard your entire productivity. You detect mechanical changes early and can procure the necessary spare parts in a forward-looking way. This makes repairs and maintenance intervals significantly easier to plan and calculate.

The advantages at a glance:

• Fast, cost-effective, and directly on-site
• Preventive maintenance ensures safe production
• Measurement and evaluation at a fixed price
• All measurement results are documented and discussed on-site

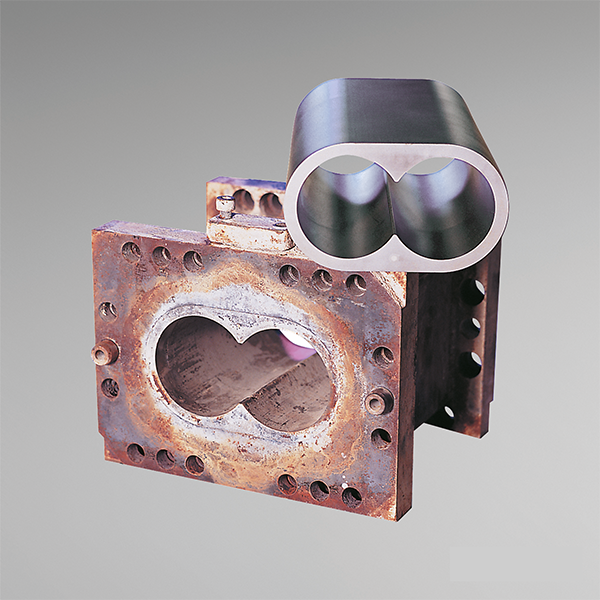

We replace worn bushings, and if required convert solid barrels to a bushing version

The barrel is a complex and capital-intensive component. Even with advanced wear, disposal is usually not the most economical solution. If your barrel already has a wear bushing, refurbishment is highly efficient: you send us your barrels for inspection of the base body. We professionally refurbish the barrel body if necessary, remove the worn bushing, and install a precise new part. The result is a technically as-new barrel for your production process.

Was your barrel originally made solid, and would you like to save resources? C.A.PICARD^® retrofits many barrel geometries to a bushed version. In future you will benefit from the easy replaceability of the wear parts. This alternative secures the longevity of your plant components and saves costs in the long run.

Contact our experts for a technical inspection of your barrels, before you call your scrap dealer.
